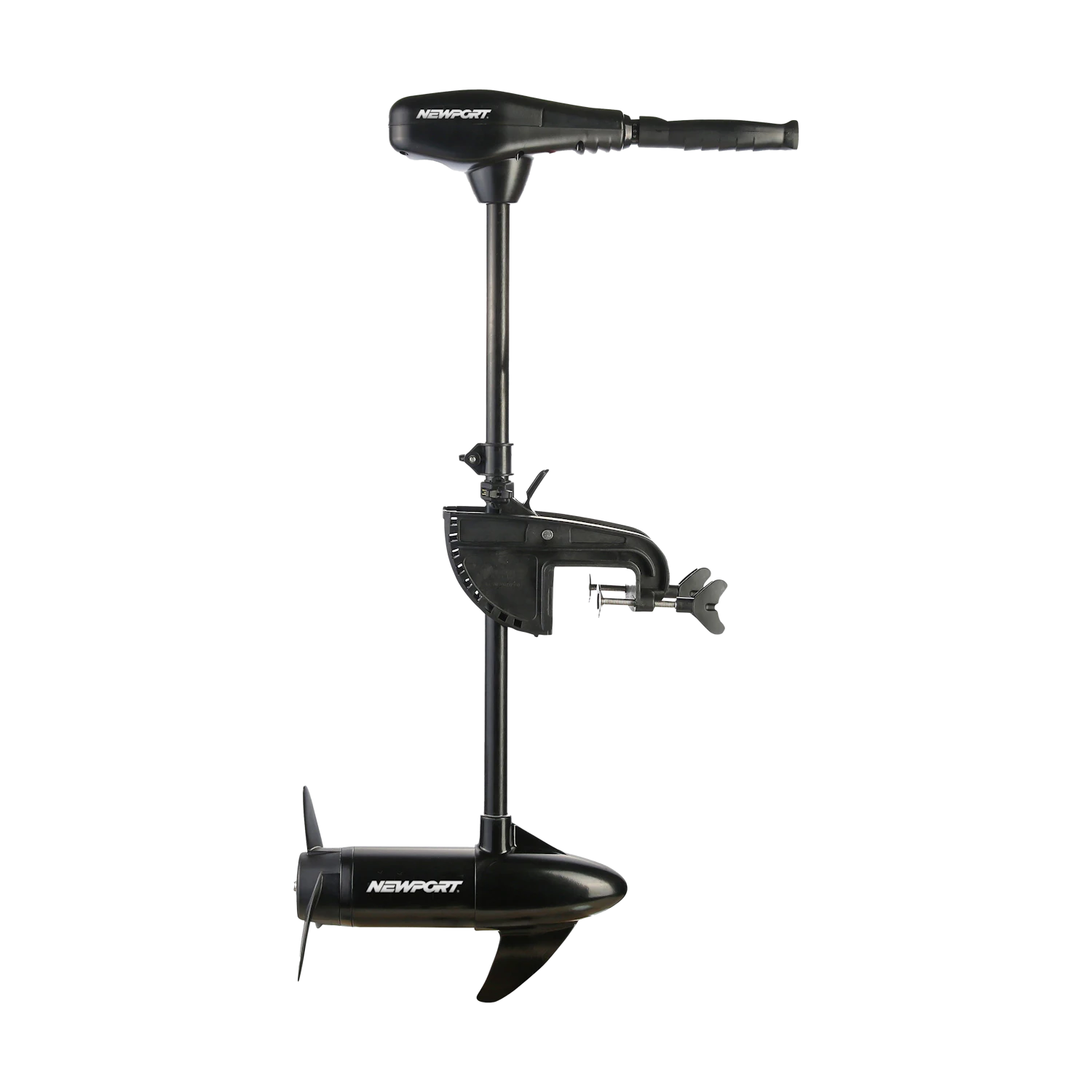

NV SERIES

Stronger. Faster. Lighter. The NV Series will get you there faster and keep you out on the water longer. Giving you a longer run-time without sacrificing reliability or performance, this versatile and all-purpose trolling motor is constructed with the highest quality materials to ensure years of use.

Built to Perform

Available in 36lb, 46lb, 55lb, 62lb, or 86lb thrust, and with adjustable 30-inch and 36-inch shaft lengths, this trolling motor is built to fit all small boats, kayaks, canoes, rowboats, bass boats, jon boats, and skiffs. All Newport trolling motors are designed to be used with Deep Cycle or Marine batteries (Flooded, SLA, AGM, or Gel).

Key Features

8 Speeds

5 Forward, 3 Reverse. All with the turn of a notched tiller.

Versatile

Fresh/Saltwater rated. Any water, anwywhere, the NV Series will get you there.

DURABLE

Exceptional build quality using only the highest quality and trusted components.

DEPENDABLE

Tried and true design that's kept our customers satisfied for a decade.

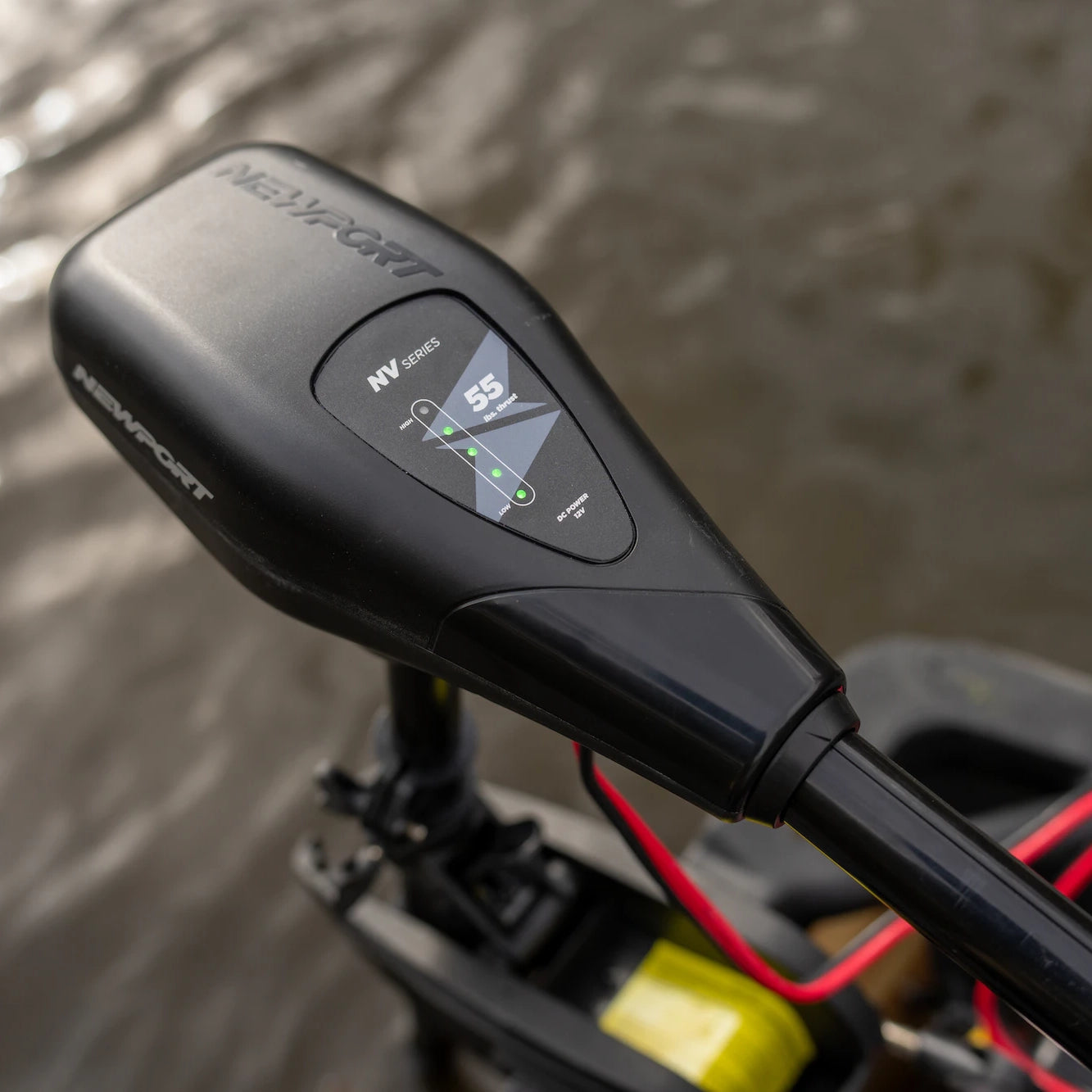

BATTERY METER

Bright LED battery meter status to let you know where your battery is at.

SPEED ADJUSTMENT

Precisely delineated speed transitions.

TRIM ADJUSTMENT

Quick swing trim adjustment for launching and operating anywhere.

COMPATIBLE & ADJUSTABLE

Up to 3.5" transom width, vaiarble depth adjustment, & 6" telescoping handle.

The Specs // At A Glance

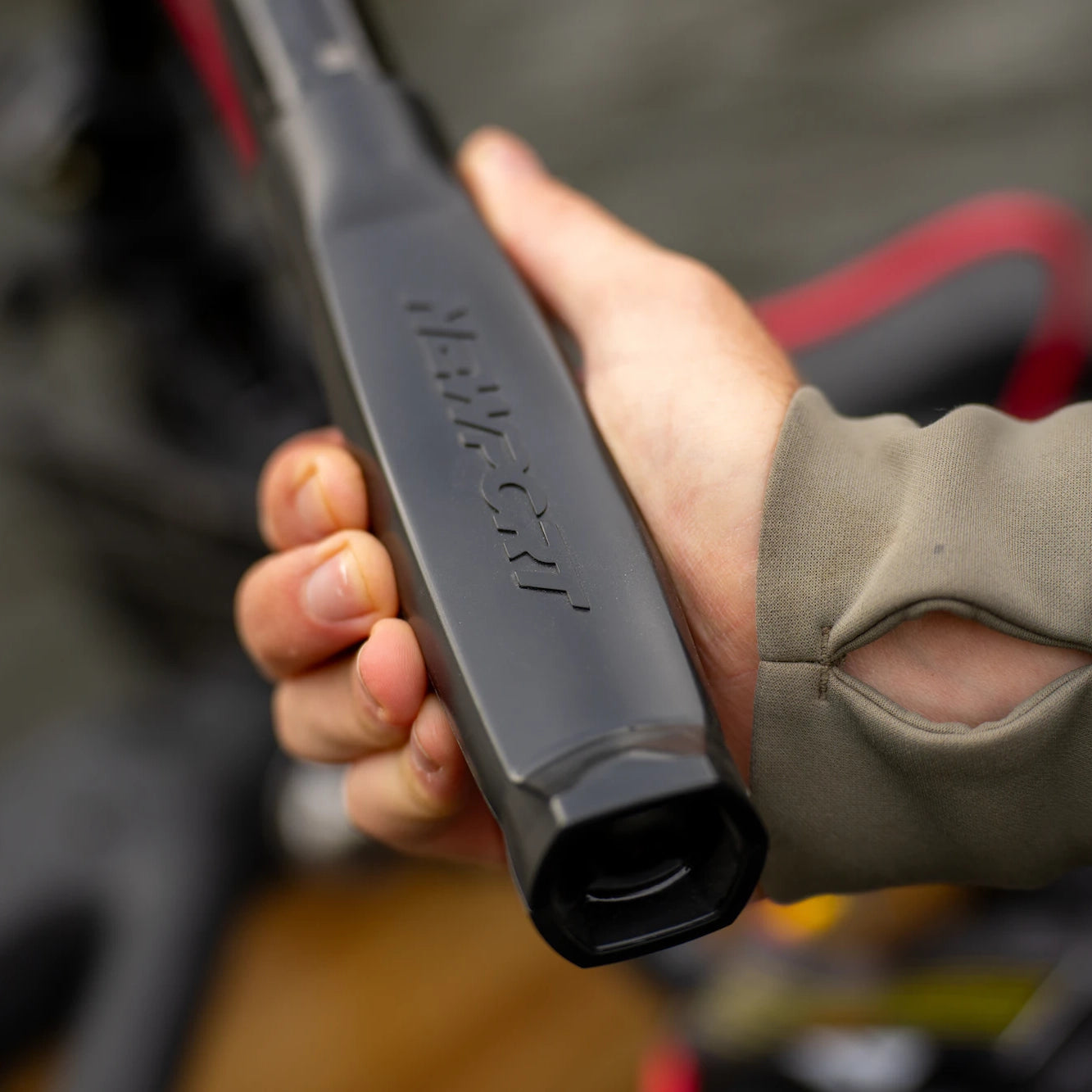

  • Ergonomically shaped tiller handle can extend up to 6".
  • Full shaft-length depth and steering tension adjustment for all conditions.
  • Large knob adjustable mounting mechanism for varying transom thicknesses.
  • Easy trim adjustment for launching, storage, and motor angle optimization.
  • Robust, corrosion-resistant aluminum casing; designed for fresh or saltwater use.

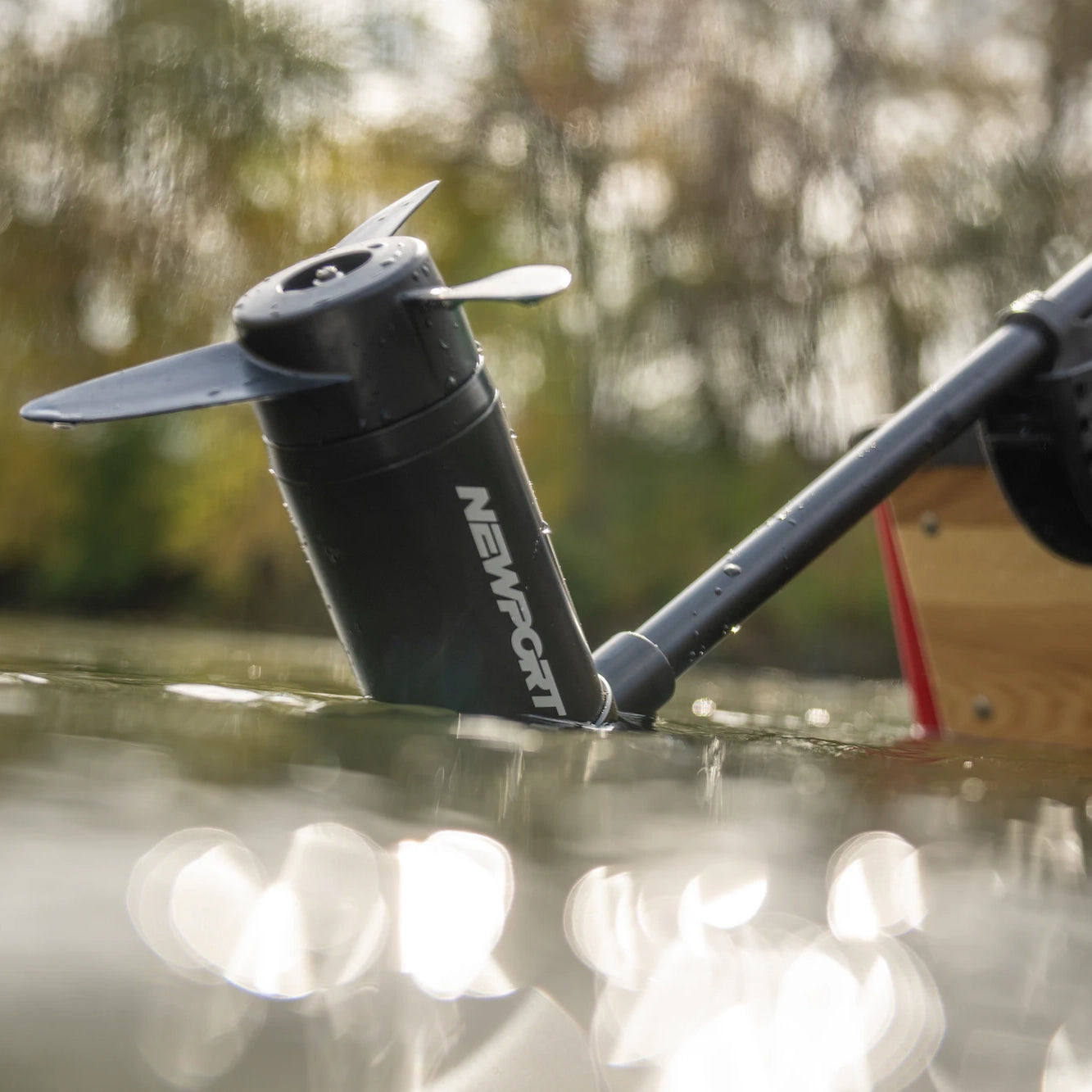

  • Durable and powerful, easily replaceable propeller.
  • Thrust Options:36lb | 46lb | 55lb | 62lb | 86lb
  • Water Compatibility:Saltwater & Freshwater
  • Horsepower Equivalent:.48hp | .64hp | .83hp | .93hp | 1.5hp
  • Speeds:5 Forward, 3 Reverse
  • Max Amp Draw:29A | 40A | 52A | 58A | 48A
  • Weight:18lbs | 20lbs | 23lbs | 23 lbs | 25lbs
  • Operational Specs

    Shaft Length: 30" (36lb, 46lb, 55lb) | 36" (62lb, 86lb)
    Shaft Diameter: 1.15"
    Tiller/Handle: 6" Telescoping
    Battery Meter: 5 Point LED
    Total Height: 41" (36lb, 46lb) | 42" (55lb) | 48" (62lb , 86lb)
    Voltage 12V (36lb, 46lb, 55lb, 62lb) | 24V (86lb)
    Motor Diameter: 3.2" (36lb,46lb) | 3.7" (55lb, 62lb,86lb)
    Lower Motor Length: 13.7" (36lb,46lb) | 15.4" (55lb,62lb,86lb)
    Circuit Breaker: 40A | 50A | 60A | 60A | 60A
    Compatible Battery Type: Lead-Acid
    Battery Cable Length: 4'
    Recommended Amp Hours: 50AH or larger

  • Recommended Vessels

    36lb & 46lb: Light Duty Inflatable Boats, Kayaks
    55lb: Inflatable Dinghies, Flat Bottom Boats
    62lb & 86lb: Jon Boats, Skiffs, Rowboats, Canoes

  • What's In The Box?

    NV Series Trolling Motor
    Propeller (2 Blade Small (36lb) | 3 Blade Small (46lb) | 3 Blade Large (55lb - 86lb))
    Installation tools
    Drive-Pin, Washer, Tightening Nut and Spanner/Wrench
    Circuit Breaker: 40A (36lb) | 50A (46lb, 55lb & 86lb) | 60A (62lb)
    Owner's Manual
