The Flagship

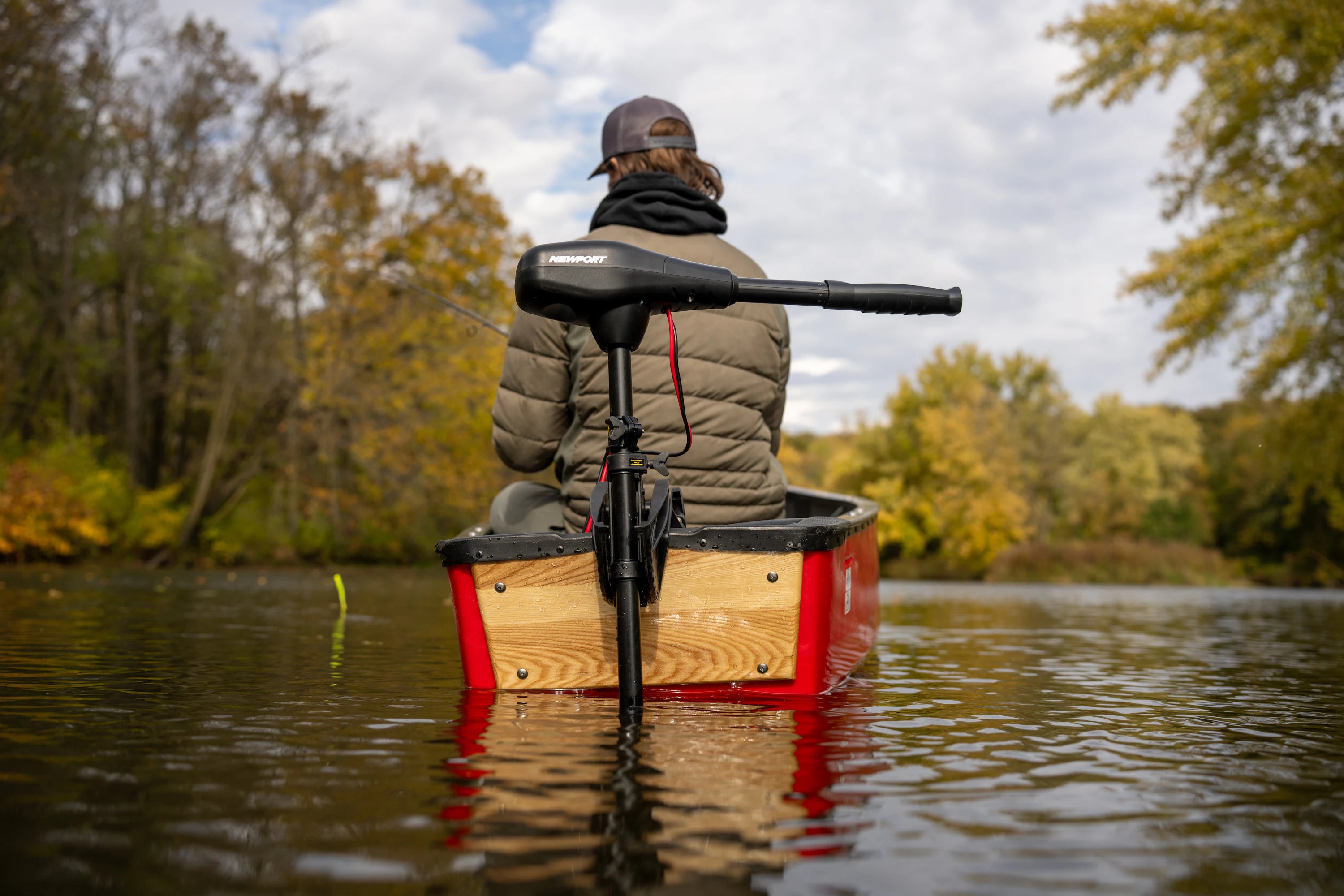

The NV Series offers simplicity, durability, and reliability in an affordably priced package. With thrust options ranging from 36lb to 86lb, and 30 inch or 36 inch shaft lengths, the NV Series is perfect for any jon boat, flat bottom boat, dinghy, canoe, or kayak.

Simple & Effective

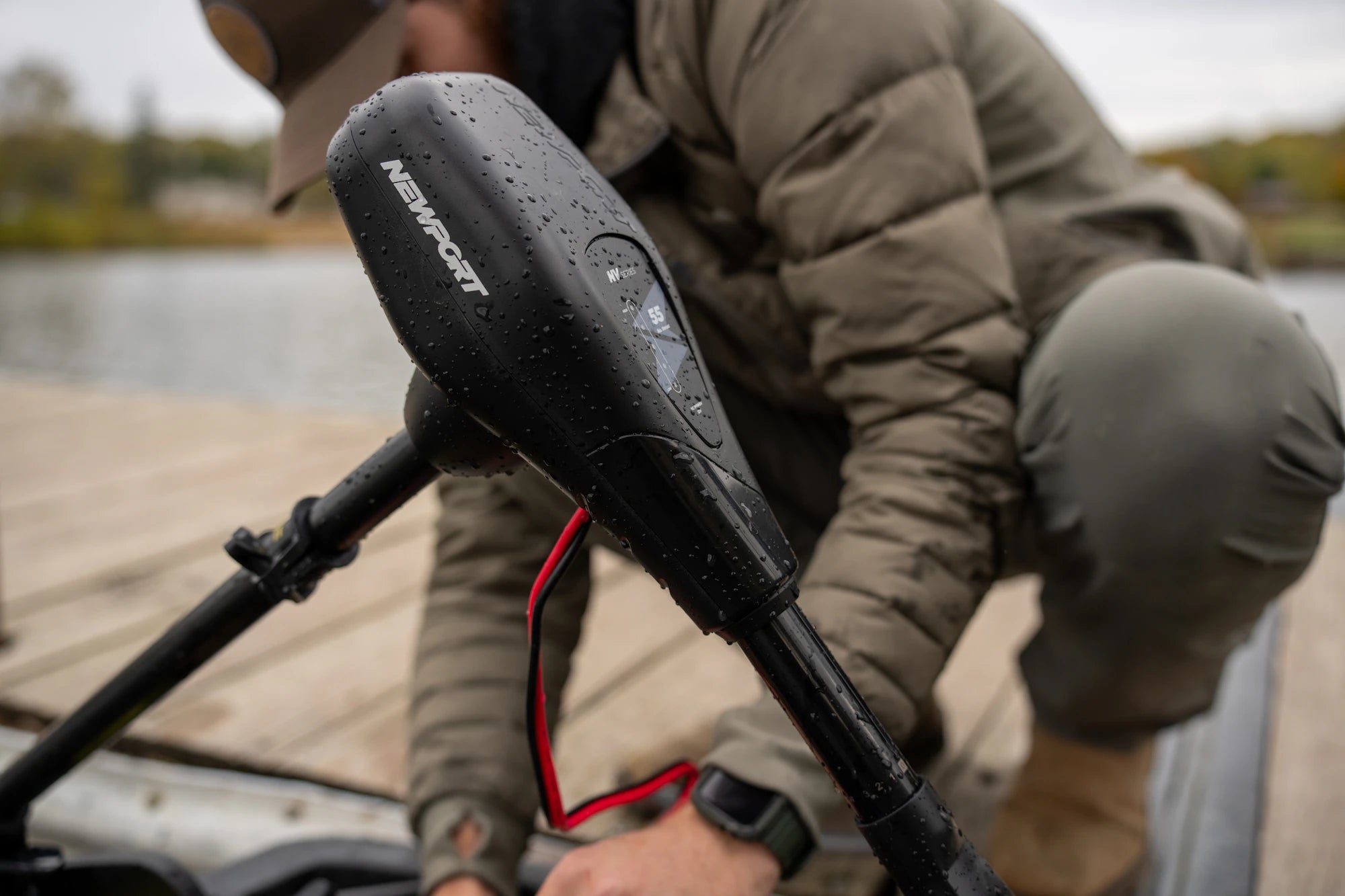

With the easy to read, 5 point LED power meter, you’ll never have to wonder how much charge is left in your battery. This allows you to travel farther, and fish for longer without worrying whether you’ll have to paddle back to the dock.

Extremely versatile and durable, our NV Series Electric Trolling Motor is the perfect transom-mount motor for smaller watercraft. Giving you a longer run-time without sacrificing reliability or performance, this versatile and all-purpose trolling motor is constructed with the highest quality materials to ensure years of use.

Available with adjustable 30-inch and 36-inch shaft lengths, this trolling motor is built to fit all small boats, kayaks, canoes, rowboats, bass boats, jon boats, and skiffs. The versatile 8-speed control system (5 forward speeds and 3 reverse speeds) makes for a smooth ride with progressive speed adjustments. The 5 Point LED battery meter ensures you never run out of battery by giving you up immediate battery charge readings while using your motor.

All Newport Vessels branded trolling motors are designed to be used with Lead-Acid style Deep Cycle or Marine batteries (Flooded, SLA, AGM, or Gel). The use of Lithium batteries is not recommended and won't be compatible with some of the features offered on our motors. For more information, please read our post Lithium Batteries With Trolling Motors?


NV SERIES TROLLING MOTORS INCLUDE:
  • Trolling Motor
  • Propeller
  • 2 Blade Small (36lb) || 3 Blade Small (46lb) || 3 Blade Large (55lb - 86lb)
  • Propeller Installation Hardware
  • Drive-Pin, Washer, Tightening Nut and Spanner/Wrench
  • Circuit Breaker
  • 40A (36lb) || 50A (46lb, 55lb & 86lb) || 60A (62lb)
OTHER ACCESSORIES NEEDED FOR OPERATION:
  • 12V Deep Cycle or Marine Battery (Lead-Acid) rated at least 50 amp-hour (ah). Amp-hours will determine the run time of the motor.
  • 86lb Motor require 2 x 12V batteries connected in series.
  • 12V Battery Charger.
  • Click here to download NV Series Owners Manual
Overview:

Thrust Power: 36lb || 46lb || 55lb || 62lb || 86lb

Water Compatibility: Saltwater & Freshwater

Horsepower Equivalent: .48hp | .64hp | .83hp | .93hp | 1.5hp

Speeds: 5 Forward, 3 Reverse

Max Amp Draw: 29A | 40A | 52A | 58A | 48A

Weight: 18lbs | 20lbs | 23lbs | 23 lbs | 25lbs

Specs:

Shaft Length: 30" (36lb, 46lb, 55lb) | 36" (62lb, 86lb)

Shaft Diameter: 1.15"

Tiller/Handle: 6" Telescoping

Battery Meter: 5 Point LED

Total Height: 41" (36lb, 46lb) | 42" (55lb) | 48" (62lb , 86lb)

Voltage 12V (36lb, 46lb, 55lb, 62lb) | 24V (86lb)

Motor Diameter: 3.2" (36lb,46lb) | 3.7" (55lb, 62lb,86lb)

Lower Motor Length: 13.7" (36lb,46lb) | 15.4" (55lb,62lb,86lb)

Circuit Breaker: 40A | 50A | 50A | 60A | 50A

Compatible Battery Type: Lead-Acid

Battery Cable Length: 4'

Recommended Amp Hours: 50AH or larger

Trolling Motor Warranty

Two Year Limited Warranty - (Warranty is non-transferable)

  1. We guarantee that each new electric trolling motor (hereinafter to be referred to as the “product”) is free from defects in material and workmanship.
  2. If your product arrives in a badly damaged box, please notify Newport Vessels immediately. If the box has been opened during shipment, simply refuse delivery of the product and it will be delivered back to our warehouse so we can ship you a replacement.
  3. This warranty applies only to defects in material and workmanship for a period of two years from the date of purchase, it does not apply to normal wear and tear, or to damage caused by:
    • Neglect, abuse, accidents, theft, abnormal or improper use, or modification.
    • Use of an accessory or part not manufactured or sold by Newport Vessels.
    • Alteration or removal of parts.
    • Commercial use.
  4. This warranty does not cover incidental or consequential costs or expenses such as haul-out, launching, towing transport and storage charges, telephone or rental charges of any type, inconvenience, waste of time or income losses, or other consequential damages.
  5. To obtain warranty service for the Product believed to be defective, the customer must provide reasonable access to the Product for warranty service by Shipping the Product for inspection to the Newport Vessels distribution center. The customer must include in the shipment, and proof of original purchase. We shall then arrange for the inspection, repair or replacement, provided such service is covered under this warranty. The purchaser shall pay for all related transport expenses and/or any other expenses associated with that service. Any product or part shipped by the purchaser for inspection or repair must be shipped with transportation charges prepaid. Taking photographs and emailing them may suffice, contingent upon prior approval from a Newport Vessels manager.
  6. Newport Vessels' obligation under this warranty shall be limited to repairing a defective part, or at our discretion, replacing such part or parts as shall be necessary to remedy the malfunction resulting from defects in material or workmanship as covered by this warranty. We reserve the right to improve the design of any Product without assuming any obligation to modify any product previously manufactured. Each Product is entitled to one warranty claim submission and approval, once the claim is processed and approved, the Product is no longer eligible for future warranty claims.
  7. Trolling motors purchased from unauthorized retailers are not covered by this warranty such as 3rd party Amazon resellers, eBay resellers, or other liquidator.
  8. Trolling motors purchased as "Refurbished" or "Renewed" or "Used", are not subject to this warranty.
NV Series - Electric Trolling Motor

PARTS KITS FOR NV SERIES TROLLING MOTORS

Click here to be directed to the parts store for the NV Series Trolling Motor Family: NV SERIES PARTS

Download the full parts schematic for 36lb and 46lb thrust models here

Download the full parts schematic for 55lb, 62lb, and 86lb thrust models here
