LED Battery Meter

Group 24 & 27 AGM Compatible

2x Accessory Ports

Charges through terminals

LED Battery Meter

Group 24 & 27 AGM Compatible

2x Accessory Ports

Charges through terminals

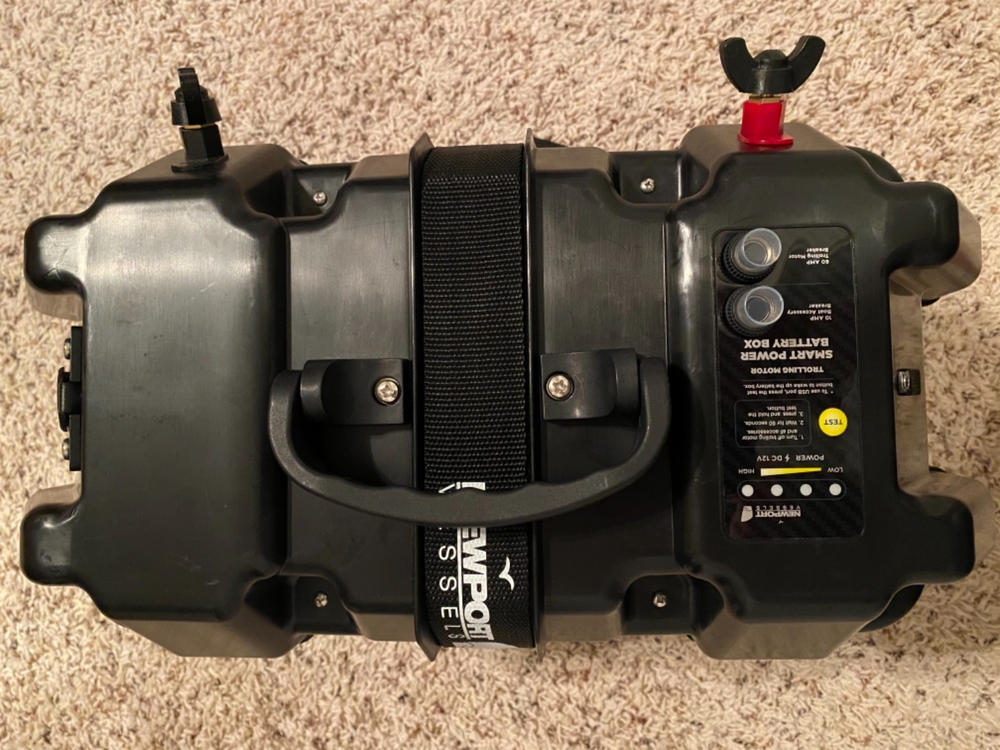

CUSTOMER SUBMITTED PHOTOS

RECHARGE

With the USB and a 12V DC Power Outlet, you can easily charge your most important devices while out on the water. Visual Battery Meter The outer shell's power interface provides a visual LED battery meter displaying your battery's current charge (The feature is not compatible with Lithium batteries). Dual Circuit Breakers Two waterproof push button test circuit breakers for both the main 60 AMP trolling motor terminals and the 10 AMP boat accessory power ports available. Non-Slip Built-in rubberized foot inserts, so your battery will not slide around the floor of your boat. Ultimate Marine Accessory For use with Newport Vessels, Minn Kota, and MotorGuide trolling motors, jon boats, bass boats, other personal watercraft, and RV batteries for accessory power.

Watch video

Key Features

The Specs // At A Glance

  • Battery Voltage Compatibility: 12V
  • Product Dims: 17" x 12" x 10"
  • Product Weight: 3 lbs
  • Max Battery Fit: 13.75" x 7.5" x 10"
  • Battery Meter: Yes
  • Shipping Dims: 18" x 13" x 11"
  • USB Plug: Yes
  • External Post Diameter: 3/8"
  • 12V DC Outlet: Yes
  • External Post Length: 1/4"
  • Circuit Breaker 1: 10 AMP to protect accessory ports from electrical damage
  • Circuit Breaker 2: 60 AMP to protect trolling motor from electrical damage
  • Built For: Trolling Motor & Other Battery Powered Applications
  • OVERVIEW

    Built-in LED Battery Meter
    Measure battery charge level with the push of a button. (The feature is not compatible with Lithium batteries)
    External Battery Posts
    Safely and easily connect your trolling motor or accessory to the battery ports without opening the box. This also allows you to charge your battery without having to remove it!
    Dual Integrated Circuit Breakers
    Integrated with 10 AMP and 60 AMP circuit breakers to protect your trolling motor and other accessories from electrical damage
    NOTE: TROLLING MOTORS AND DEVICES WILL HAVE DIFFERENT CIRCUIT BREAKER RECOMMENDATIONS. PLEASE CHECK THESE BEFORE CONNECTING YOUR DEVICE.
    Non-Slip Rubber Feet
    Non-slip feet inserts enable your batter box to stay in its place.
    Direct USB Charger and Accessory Port
    Includes one USB charger (5V - 0.5Amp) and one 12V accessory port for charging of accessories
    Fits Most Common Batteries
    Interior space fits the most common batteries Group 24 and 27 (Not included). Max Battery dimensions to fit Interior space are 13.75" Long x 7.5" Wide x 10" Tall.

  • Features

    Visual LED Battery Charge Level Meter
    Dual Integrated Circuit Breakers
    USB and 12V DC Power Outlets
    Rubberized Non-Slide Foot Inserts
    Built-in LED Battery Meter
    Dual Integrated Circuit Breakers
    External Battery Ports
    Direct USB Charger and Accessory Port
    Fits Most Common Batteries
    Non-Slip Rubber Feet

  • Owner's Manual

  • How to Measure Battery Charge Level:

    1. Connect the device to a trolling motor.
    2. Press and hold the test button. The number of illuminated LEDs will indicate the charge level of the battery.

  • USB Operation:

    To use the USB Port, plug in the USB device into the port. Then press the test button to wake up the system. When the USB port is connected to a mobile device and charging it, the last LED will keep flashing for the duration of the connection.
