The Newport LoPRO Lithium Batteries are designed to deliver reliable power across all voltage and amp-hour configurations. No matter which version you have—12V, 24V, or 36V—the setup process remains the same. Follow these simple steps to get started and ensure optimal performance.

Step 1: Unpacking and Initial Setup

  1. Remove the Battery from Packaging
    • The LoPRO battery case is identical across all configurations; only the internal setup varies.
  2. Attach the IP67 Compression Plugs
    • Each terminal has a plastic cover; remove it before installation.
    • Connect red to red and black to black on the battery terminals.

Step 2: Charging the Battery

  1. Plug the Charger into the Wall
    • Once connected, let the battery charge completely.
  2. Monitor the Charge Status
    • A solid green light indicates a full charge.
  3. Unplug the Charger
    • Once fully charged, disconnect the charger before proceeding.

Step 3: Connecting the Power Pigtail

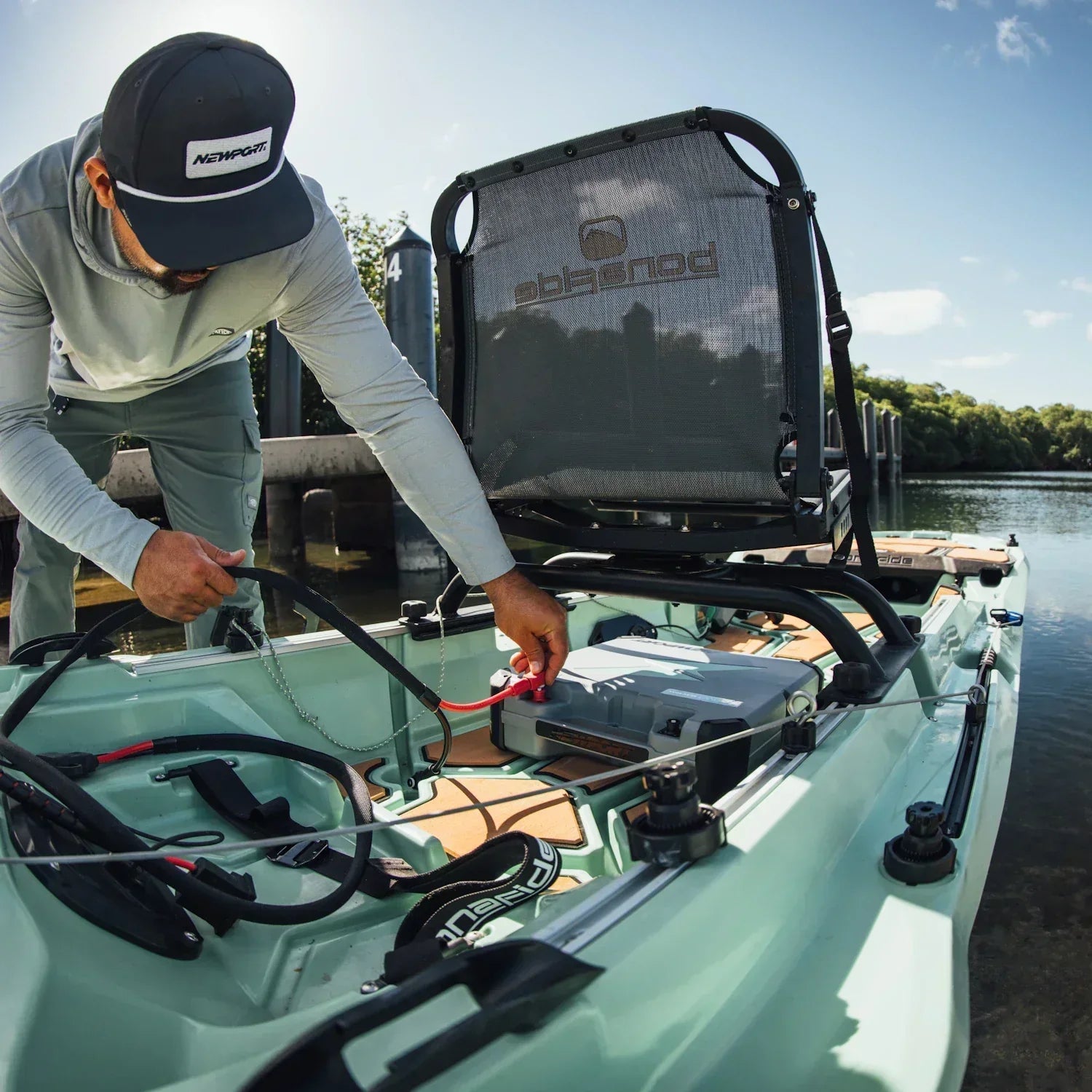

  1. Attach the Power Pigtail to the Battery
    • Again, connect black to black using the IP67 plugs.
    • These plugs require firm pressure until you hear a click and lock.
  2. Removing the Plug
    • Press the small release button on the plug and gently wiggle it off.
    • If needed, use duckbill pliers for assistance.

Step 4: Connecting to the Newport BMS App

  1. Pair with the Battery Management System (BMS)
    • Download and install the Newport BMS app.
    • Connect to the battery using the serial number found on the bottom back corner.
  2. Monitor Your Battery
    • Ensure the battery is at 100% charge before use.
    • If running multiple batteries in series or parallel, check one at a time.

Step 5: Battery Orientation & Mounting

  1. Flexible Mounting Options
    • The battery can be mounted upright, flat, or even upside down.
    • Built-in strap mounting grooves allow for secure installations.
  2. Parallel or Series Connections
    • Use Newport’s Parallel Wiring Kit for expanded power needs.
    • Batteries nest securely with recessed corners to prevent movement.

Step 6: Post-Use Maintenance

  1. Cleaning After Use
    • If exposed to mud, sand, or saltwater, leave plugs intact and rinse with a light water mist.
    • Dry completely before unplugging and charging.
  2. Storage & Charging
    • If storing for extended periods, top off the charge once a month.
    • Use the BMS app to monitor charging cycles and battery health.

Additional Features

  • Up to 10,000 Charging Cycles
    • With proper care, your LoPRO battery will last for years.
  • IP67 Waterproof Rating
    • Fully sealed against water ingress.
  • Self-Regulating Pressure Vent
    • Includes a Gore-Tex vent to maintain internal pressure. Do not tamper with it.

Final Thoughts

Setting up your LoPRO Lithium Battery is straightforward, and with proper maintenance, it will provide years of reliable service.

POWER YOUR WATER. YOUR WAY. NEWPORT.
