With an ultra-quiet, energy-efficient 3HP electric motor, the NK300 delivers unparalleled performance on the water with a clean design and an easy-to-use electric outboard.

1300 W

PEAK POWER

66 MILES

MAX RANGE

6.5 MPH

TOP SPEED

30 HRS

MAX RUNTIME

NK300 PEAK POWER

NK300 MAX RANGE

NK300 TOP SPEED

NK300 MAX RUNTIME

Icon
Fast & tracked Delivery
Icon
30-DAY RETURNS
Icon
2-YEAR WARRANTY
Icon
legendary customer service
Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(63)

THE NK300

These days, more and more anglers are discovering the joys of kayak fishing, and with this shift, the benefits of an electric outboard have only grown. With a cleaner, quieter motor, access to hard-to-reach spots becomes a reality—without disturbing the environment (or the peace) of hidden waters. A trailblazer in this growing market, the NK300 delivers high performance and maximum efficiency via cutting-edge battery power, unlocking a wider range than ever before.

Traveling Speeds
1 MPH
2 MPH
3 MPH
4 MPH
5 MPH
6 MPH
7 MPH
Range
distance calculation
distance calculation
distance calculation
distance calculation
distance calculation
distance calculation
distance calculation
Runtime
time calculation
time calculation
time calculation
time calculation
time calculation
time calculation
time calculation
Efficiency
WattHrs/Mile
WattHrs/Mile
WattHrs/Mile
WattHrs/Mile
WattHrs/Mile
WattHrs/Mile
WattHrs/Mile
THE NEWPORT DIFFERENCE

Power Your Adventures
With Peace Of Mind

Say Goodbye To Hit-or-Miss Performance And Hello To Uninterrupted Fun On The Water With Our Advanced Technology

Cutting-Edge Technology

The NK300 is equipped with a cutting-edge brushless, direct-drive motor, offering maintenance-free reliability and advanced field-oriented control technology for smooth and intuitive navigation.

  • Brushless Direct-Drive
  • FOC Technology

Unmatched Performance

With the highest speed and thrust in its class, the NK300 ensures top-tier performance, making it the leading product in its category.

  • 1300w / 3hp
  • 6.5 mph top speed

Flexible Power

Flexible power options allow for tailored use with any 36-volt DC battery system, providing an extended range and optimized onboard weight distribution.

  • 36V Deep Cycle & Lithium Battery Compatible
  • Optimized onboard weight distribution

Empowering Your Boating Experience

THE SPECS // AT A GLANCE

Unlocking the Potential of Newport Motors

  • Power: 1300W (3HP equivalent)
  • Input Voltage: 36V DC
  • Amp Draw: 37 amps
  • Motor Weight: 25.5 lbs
  • External Battery: 36V DC 30 Ah minimum
  • Propeller: 9.8" 2-blade composite propeller
  • Trim/Tilt Angle: 0°, 7°, 14°, 21° / 70°
  • Shaft Length: 24.60"
  • Motor: Brushless DC motor
  • Direct Drive: Yes
  • Maintenance-Free: Yes
  • Sound Level: 40 decibels (out of water)
  • Length of lower motor: 9.25"
  • Diameter of lower motor: 4.5"
Money back guarantee

30 Days Money-Back Guarantee

the Newport difference

Discover the Superiority of Newport Motors

Compare Motor Models Below

NK300
NK180PRO
55 LB NV Series
62lb L Series
Product
Propulsion Type
Purpose
Power
Shaft Length
Weight
Battery Meter
Stock Propeller
Motor
Max Amp Draw
Freshwater and Saltwater Compatibility
Battery Requirements
Mount
Outboard Kayak Motor
Primary Propulsion
110lb Thrust
(3 HP Equivalent)
24.6"
25.5lbs
Digital Battery Precentage & Voltage Display
2 Blade (NK300)
Brushless
37 AMPS
One 36V LiFeP04
4 Bolt Pattern
Outboard Motor
Primary Propulsion
65lb Thrust
(1.8 HP Equivalent)
21.7"
14.3lbs
Digital Battery Percentage & Voltage Display
2 Blade (NK180PRO)
Brushless
25 Amps
One 24V LiFeP04
4 Bolt Pattern
Trolling Motor
Secondary Propulsion
55lb Thrust
(0.83 HP Equivalent)
30"
23lbs
5-Point LED
3 Blade (Standard)
Brushed
52 Amps
One 12V Deep Cycle
Standard
Transom Mount
Trolling Motor
Secondary Propulsion
62lb Thrust
(0.93 HP Equivalent)
40"
23lbs
10-Point LED
3 Blade (Large)
Brushed
50 Amps
One 12V Deep Cycle
Standard
Transom Mount
Money back guarantee

30 Days Money-Back Guarantee

tried and trusted

Take It From These Avid Anglers

Read Real Testimonials From Satisfied Customers

Find Answers to Your Questions

Frequently Asked Questions

  • Range
    Down Arrow

    40 Watts = 30 Hours = 66 Miles
    300 Watts = 4 Hours = 17.7 Miles
    1100 Watts = 1 Hour 10 Minutes = 6.76 miles

    * The performance data is based on a 12-foot kayak with one person and a 30ah Lithium battery in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.

  • Warranty & Return Policy
    Down Arrow

    NK300 Electric Kayak Motor Warranty:Two Year Limited Warranty - (Warranty is non-transferable)
    See warranty page for more details.

  • What's In The Box?
    Down Arrow

    -3HP Equivalent Motor Unit
    -Four Bolt Aluminum Mount

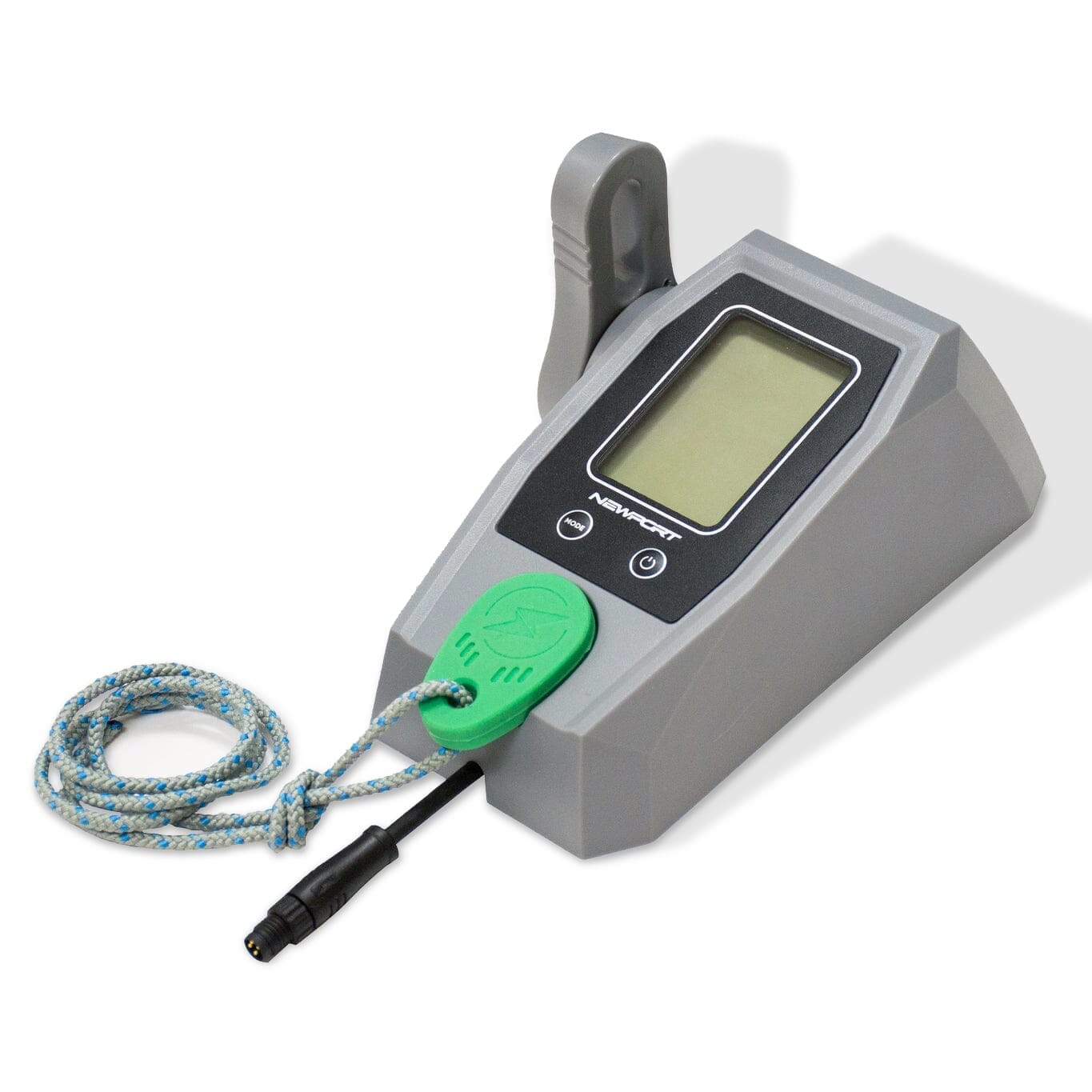

    -Digital Speed Controller w/ Display
    -Steering Triangle
    -Height Adjustment Clamp
    -Reverse Cable Handle
    -Motor Lift Cable Handle
    -Emergency Stop Key
    -Motor Lift Arm
    -2x Carabiner
    -2x S Biner
    -Nylon Cord Kit
    -Braided Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)
    -Installation Kit (hardware included, additional hardware may be necessary depending on your exact make/model of kayak)
    -BATTERY(S) NOT INCLUDED

  • FAQs
    Down Arrow

    How much power does the NK300 have?
    -The NK300 has the equivalent power of a 3-horsepower motor or 1300W at full throttle.

    What type of Battery do I use with the NK300?
    -Accepts a 36V Newport DC battery or three 12V DC batteries wired in series for 36V DC.

    How heavy is the NK300 and Battery together?
    -48.4 lbs

    View more NK300 FAQs here

  • Owner's Manual
    Down Arrow
