36 v

VOLTAGE

40 Ah

Amp Hours

28.9 LBS

Weight

29.2 VDC

Charger

36v30Ah Voltage

36v40Ah Ah

36v40ah Weight

36v40ah Charger

CUSTOMER SUBMITTED PHOTOS

Max Efficiency. Power In = Power Out

With maximixed watt output to time ratio, the Newport 36v 40Ah lithium battery gives you the power and efficiency you need on the water. Up to 40 hours of more power.

Runtime Specs:

3% Throttle @40w = 39.2Hrs
20% Throttle @260w = 6Hrs
50% Throttle @650w = 2.4Hrs
100% Throttle @1300w = 1.2Hrs

Key Features

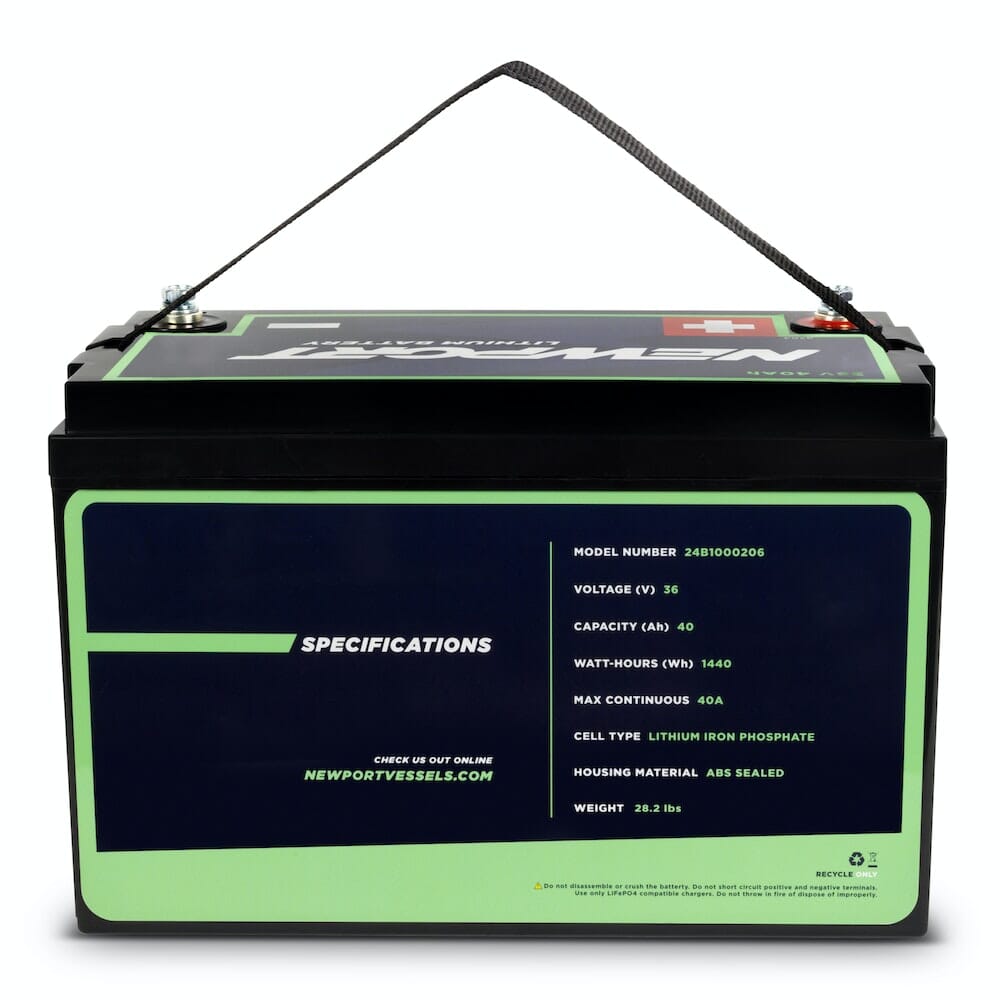

The Specs // At A Glance

  • Voltage: 36V
  • Capacity: 40Ah (1400Wh)
  • Case Type: Sealed ABS
  • Cell Type: Cylindrical
  • Charge/Discharge Connector: Screw Terminal
  • Maximum Continuous Discharge Current: 50A
  • Maximum Peak Discharge Current: 100A (5 seconds)

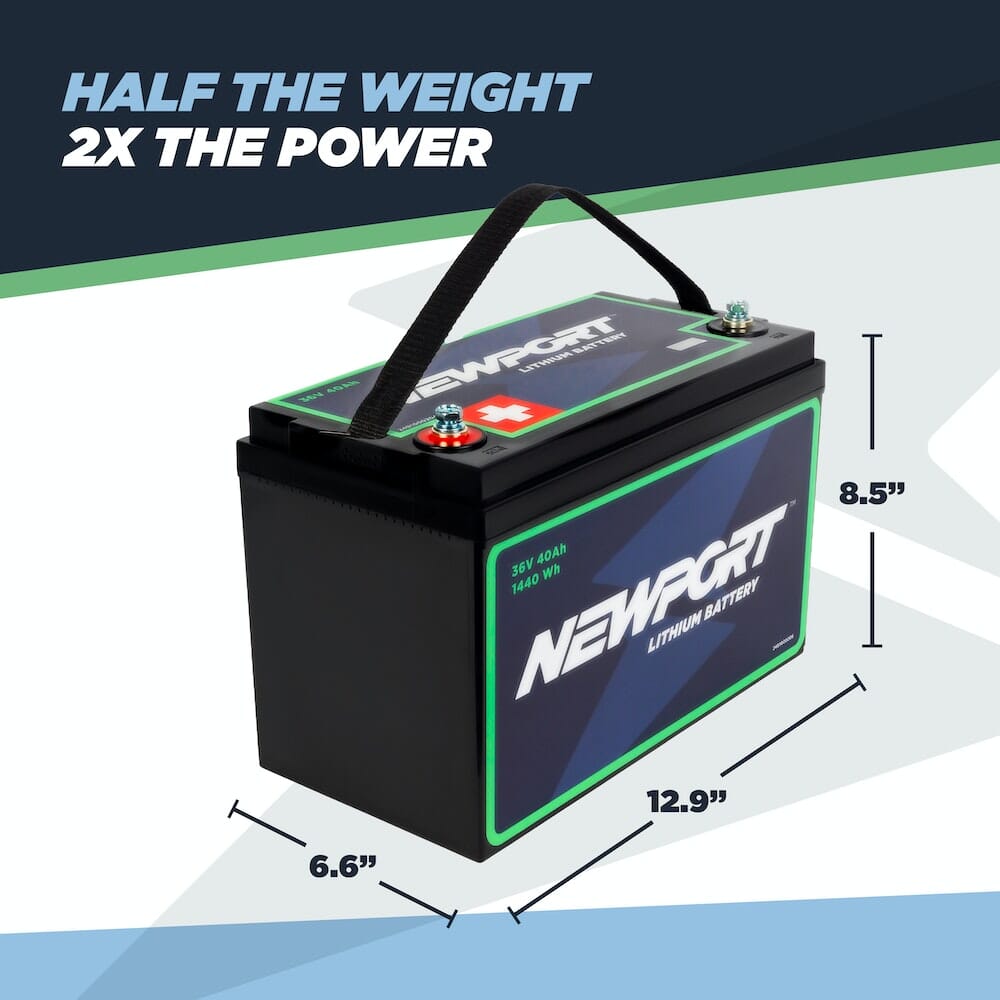

  • Dimensions: (L x W x H) 12.9 in. X 6.6 in. X 8.5 in.
  • Weight: 28.9 LBS
  • Operating Temperature: -10˚C to 60˚C
  • Charging Voltage: 43.8 VDC
  • Charging Current: 4A
  • Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, under-voltage (over-discharge), over-voltage, and short circuiting, and has integrated charging circuitry.
  • Removable Battery Carrying Strap

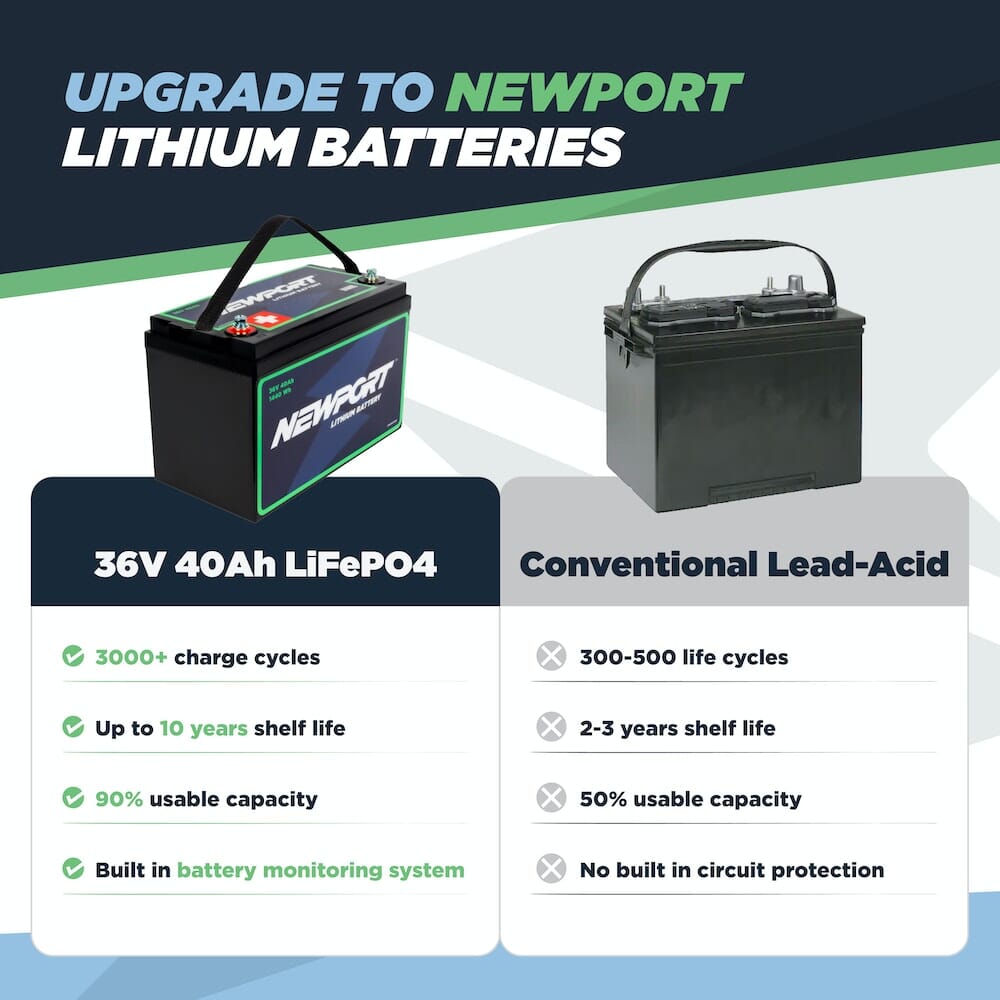

UPGRADE TO NEWPORT LITHIUM BATTERIES

With Newport Lithium Batteries, you'll be able to stay out longer, go further, and have a longer life cycle than conventional Lead-Acid marine batteries.

  • 3000+ Charge Cycles vs 300-500
  • 10Yrs Shelf Life vs 2-3yrs
  • 90% Usable Capacity vs 50%
  • BUILT-IN PCM vs No circuit protection
