3000 +

Charge Cycles

+10 Yrs

Shelf Life

90 %

Usable Capacity

Built-In

PCM

Charge Cycles

Shelf Life

Capacity

PCM

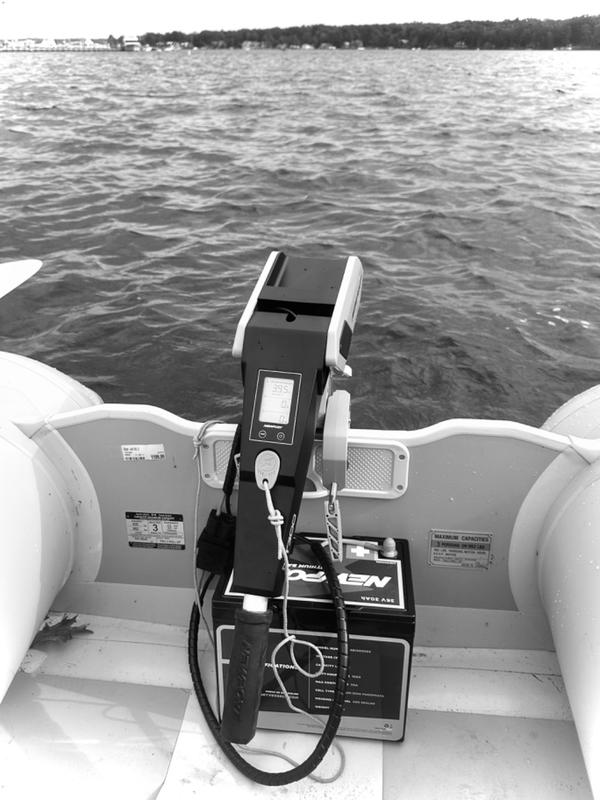

CUSTOMER SUBMITTED PHOTOS

Max Efficiency. Power In = Power Out

With maximixed watt output to time ratio, the Newport 36v 30Ah lithium battery gives you the power and efficiency you need on the water. Up to 30 hours of more power.

Runtime Specs:

3% Throttle @40w = 30Hrs
20% Throttle @260w = 5Hrs
50% Throttle @650w = 2Hrs
100% Throttle @1300w = 1Hr

Key Features

Charger Included

4amp 29.2VDC Lithium Battery Charger

More Runtime

Up to 30 hours of runtime.

2X The Power

Twice the usable capacity with 3x the shelf life.

Built-In PCM

Protection Circuit Module provides circuit protection.

1/2 the WEIGHT

50% Lighter than lead-acid batteries

36V 30Ah

36V and 30Ah producing 1080WH.

The Specs // At A Glance

  • Voltage: 36V
  • Capacity: 30Ah (1080Wh)
  • Case Type: Sealed ABS
  • Cell Type: Cylindrical
  • Maximum Continuous Discharge Current: 30A
  • Maximum Peak Discharge Current: 60A (5 seconds)
  • Dimensions: (L x W x H) 10.3 in. X 6.7 in. X 8.4 in.
  • Weight: 24.3 LBS
  • Operating Temperature: -10˚C to 60˚C
  • Charging Voltage: 43.8 VDC
  • Charging Current: 4A
  • Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, under-voltage (over-discharge), over-voltage, and short circuiting, and has integrated charging circuitry.

UPGRADE TO NEWPORT LITHIUM BATTERIES

With Newport Lithium Batteries, you'll be able to stay out longer, go further, and have a longer life cycle than conventional Lead-Acid marine batteries.

  • 3000+ Charge Cycles vs 300-500
  • 10Yrs Shelf Life vs 2-3yrs
  • 90% Usable Capacity vs 50%
  • BUILT-IN PCM vs No circuit protection
